1. Calculate the derivative:

This step provides insight into the rate of change or the momentum of a function.

Trading:

• Traders might calculate the derivative of a stock's price over time to gauge its momentum. A positive derivative indicates a rising stock price, while a negative derivative indicates a declining stock price.

2. Set the derivative equal to 0 and solve for ( x ):

This step helps find potential turning points or stationary points in the function.

OTM Explosions:

• As the price of an underlying asset nears the strike price of an OTM option, traders might set the derivative of the option's value with respect to the asset's price to zero. This helps identify the asset price at which the option's value might start to change rapidly.

3. Find the second derivative:

This step provides insight into the curvature or concavity of the function.

Expiry Trading:

• As an option nears expiration, its gamma (the rate of change of delta with respect to changes in the underlying asset) becomes crucial. This is essentially a measure related to the second derivative. It helps traders understand how sensitive an option's price is to small changes in the underlying asset's price.

4. Determine the concavity based on the second derivative:

This step helps identify local maxima and minima.

Algo Trading:

• Algorithms might use the second derivative to determine potential buy or sell points. If the stock's price graph shows a local minimum (concave up), the algorithm might be programmed to buy. Conversely, at a local maximum (concave down), it might sell.

5. Set the second derivative equal to 0 and solve for ( x ):

This step helps find inflection points where the function changes concavity.

Hedge Funds:

• Hedge funds might use this step when analyzing the yield curve, which plots interest rates of bonds against their maturity dates. An inflection point in the yield curve can indicate a change in market sentiment about future interest rates. Recognizing this point can inform decisions about bond investments.

In all of these scenarios, the steps you've outlined are about understanding and predicting changes and turning points in various financial metrics. By recognizing these changes, traders, algorithms, and funds can make better-informed decisions, whether they're choosing stocks, setting trading parameters, or hedging risks.

Inflection point

Let's start by understanding the inflection point.

An inflection point is a point on a curve at which the sign of the curvature (i.e., the sign of the second derivative) changes. The curve changes from being concave (curved upwards) to convex (curved downwards) or vice versa.

For the functions (f(x) = x^2) and (g(x) = x^3):

• (f(x) = x^2) is always concave upwards, so it does not have an inflection point.
• (g(x) = x^3) has an inflection point at (x = 0).

Let's visualize these two functions first and then discuss their relevance in the context of trading scenarios.

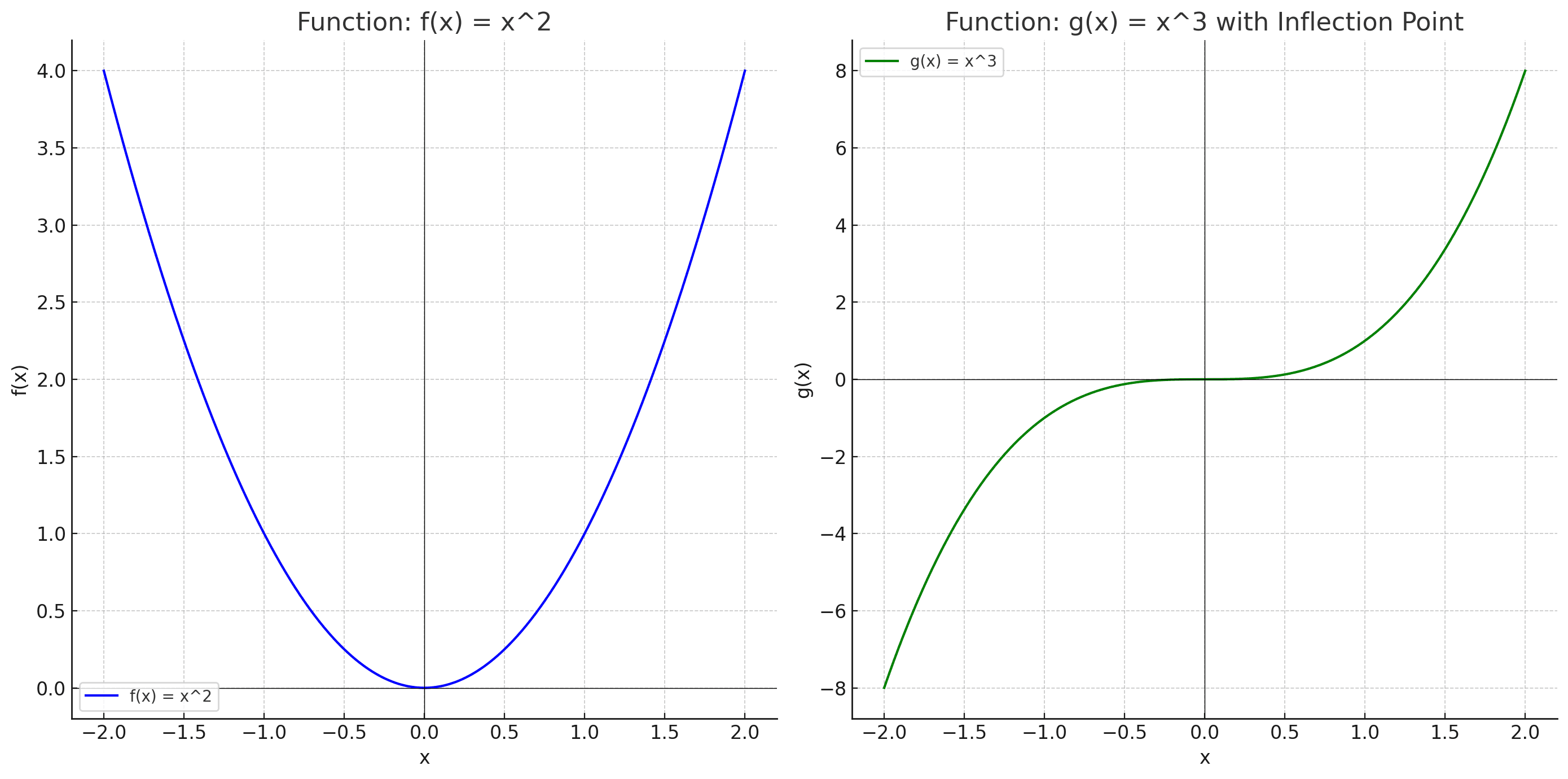

Here are the visualizations for the functions (f(x) = x^2) and (g(x) = x^3):


# Generating data for the functions
x = np.linspace(-2, 2, 400)
y1 = x**2
y2 = x**3

# Plotting
plt.figure(figsize=(14, 7))

# Plot for x^2
plt.subplot(1, 2, 1)
plt.plot(x, y1, label='f(x) = x^2', color='blue')
plt.title('Function: f(x) = x^2')
plt.xlabel('x')
plt.ylabel('f(x)')
plt.axhline(0, color='black',linewidth=0.5)
plt.axvline(0, color='black',linewidth=0.5)
plt.grid(True)
plt.legend()

# Plot for x^3
plt.subplot(1, 2, 2)
plt.plot(x, y2, label='g(x) = x^3', color='green')
plt.title('Function: g(x) = x^3 with Inflection Point')
plt.xlabel('x')
plt.ylabel('g(x)')
plt.axhline(0, color='black',linewidth=0.5)
plt.axvline(0, color='black',linewidth=0.5)
plt.grid(True)
plt.legend()

plt.tight_layout()
plt.show()


1. Function (f(x) = x^2):
   • This function (on the left) is always concave upwards, so it doesn't have an inflection point.
2. Function (g(x) = x^3):
   • This function (on the right) has an inflection point at (x = 0). As you can see, the function is concave downwards to the left of the y-axis and concave upwards to the right, making (x = 0) the point where the concavity changes.

Relevance in the context of trading scenarios:

1. OTM Explosion:

   • Think of the inflection point as a moment when an Out-of-the-Money (OTM) option suddenly starts to gain intrinsic value. Before this point (when the option is deeply OTM), the option's price might be relatively flat. But once the underlying asset's price moves closer to the strike price, the option's price might start to increase more rapidly, resembling the curve of (g(x) = x^3) on the right side of the inflection point.

2. Expiry Trading:

   • As options approach expiration, their price behavior can undergo significant changes, especially if they are near the money. The change in the rate of their price movement, depending on various market factors, can resemble the behavior around an inflection point. The option might move from a phase where its price is relatively stable (despite changes in the underlying asset) to a phase where every small change in the underlying leads to larger shifts in the option's price.

3. Algo Trading:

   • Algorithms can be designed to detect inflection points in various indicators or price graphs. Recognizing an inflection point in, say, a momentum indicator might trigger a buy or sell decision. The algorithm might interpret the change in concavity as a change in market sentiment or momentum.

In all these scenarios, the concept of an inflection point serves as a metaphor for a turning point or a change in behavior, crucial for traders to recognize and act upon.
